Tri-Clamp Sight Glass 250 PSI - Peer Reviewed Certified

Neocision Sight Glass

Tempered Strengthened Soda Lime Glass

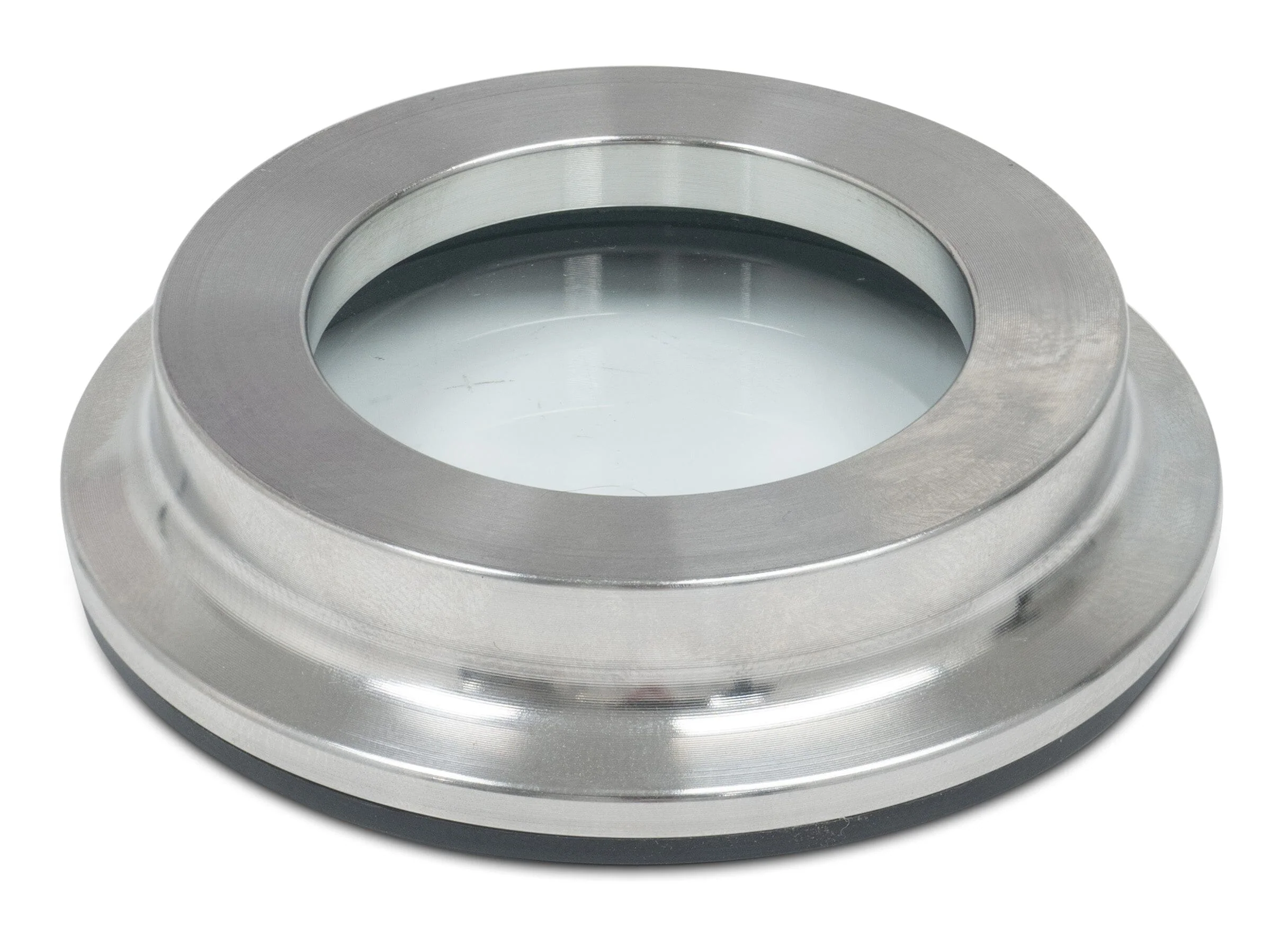

The 3 piece Neocision certified sight glasses offer a greater chemical resistance, viewing area, and cleanability compared to a traditional sight glass such as polycarbonate or Metaglas sight glasses. These Tri-Clamp sight glasses consist of 3 pieces: the tempered glass disc, Viton x-profile gasket, and custom tri-clamp ferrule. When used in combination with high-pressure clamps the working PSI is rated at 250 PSI (3rd party tested). These glasses are also resistant to thermal shock, enduring extreme heating and cooling temperatures. A Viton Tri-Clamp gasket must be used to conform with the certification ratings, and and is included.

***Disclaimer: Please handle with care when installing on to a system and do not overtighten or the glass disc may chip if the clamp torque ratings are exceeded.

Clamp Torque Specification Sheet

 Sizes Available:

• 1.5" Tri-Clamp
• 2" Tri-Clamp

Ferrule Material	304 Stainless Steel
Glass Material	Tempered Soda Lime
Gasket Material	Viton(FKM)
Connection Type(s)	Tri-Clamp
PSI Rating	250 PSI
Negative Temperature Rating	-40C



BVV™ Neocision Sight Glass - Certified Data Sheet
